HV/MV/LV electrical distribution
AVENTECH provides its technical expertise right from the preliminary design phase with end customers, electrical grid operators and EPC.
We work on the European/international regulations and meet all applicable levels of VHV voltage (63/90/225 kV) and HV voltage (15/24 kV/36 kV). We intervene across the entire value chain through our expertise in design, integration and wiring of protection & distribution equipment, sourcing, supply chain management, factory testing and shipping. Our industrial know-how and the size of the company allow us to manufacture unitary turnkey solutions for a specific project or in series in a reasonable manner in order to provide gains in productivity on so-called repetitive and standardised manufacturing.
Our distribution stations/substations can be personalised and are custom manufactured to the specifics of each of our customers in France and around the world.
expertise
Built-in products
-

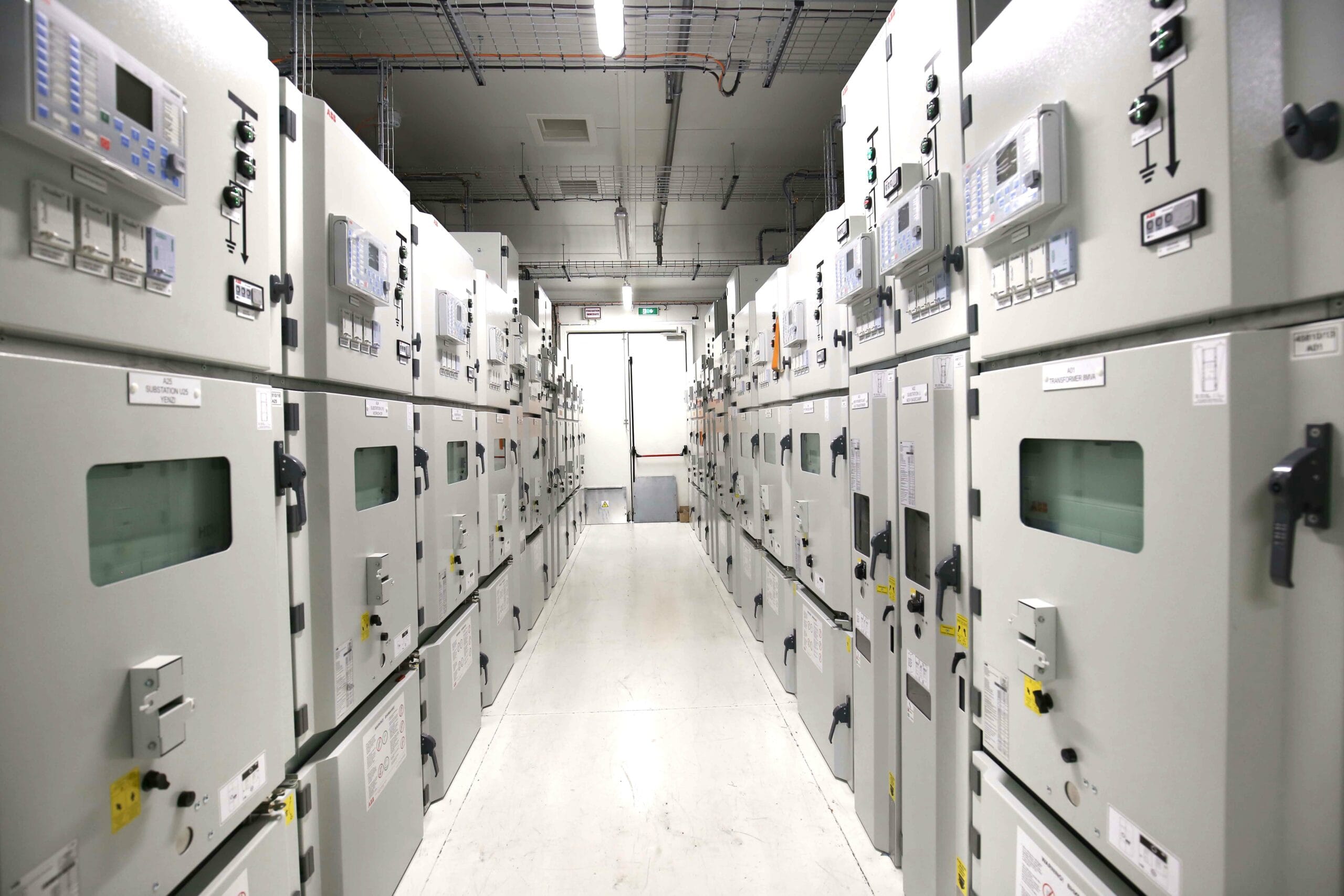

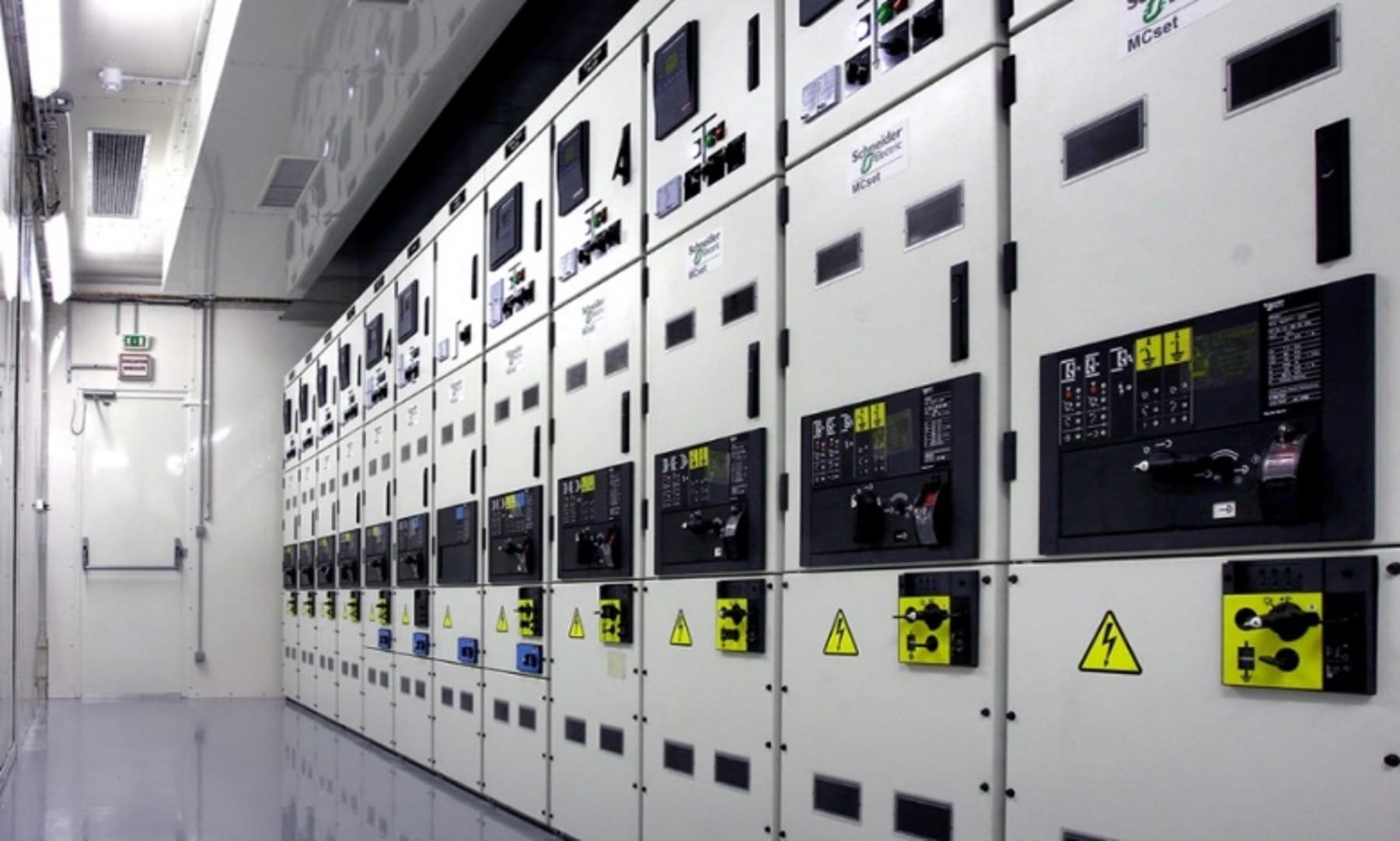

HV panels (Protection for transformer/Circuit breaker/Switch, Metering, etc.), Air- or Gas-insulated
-

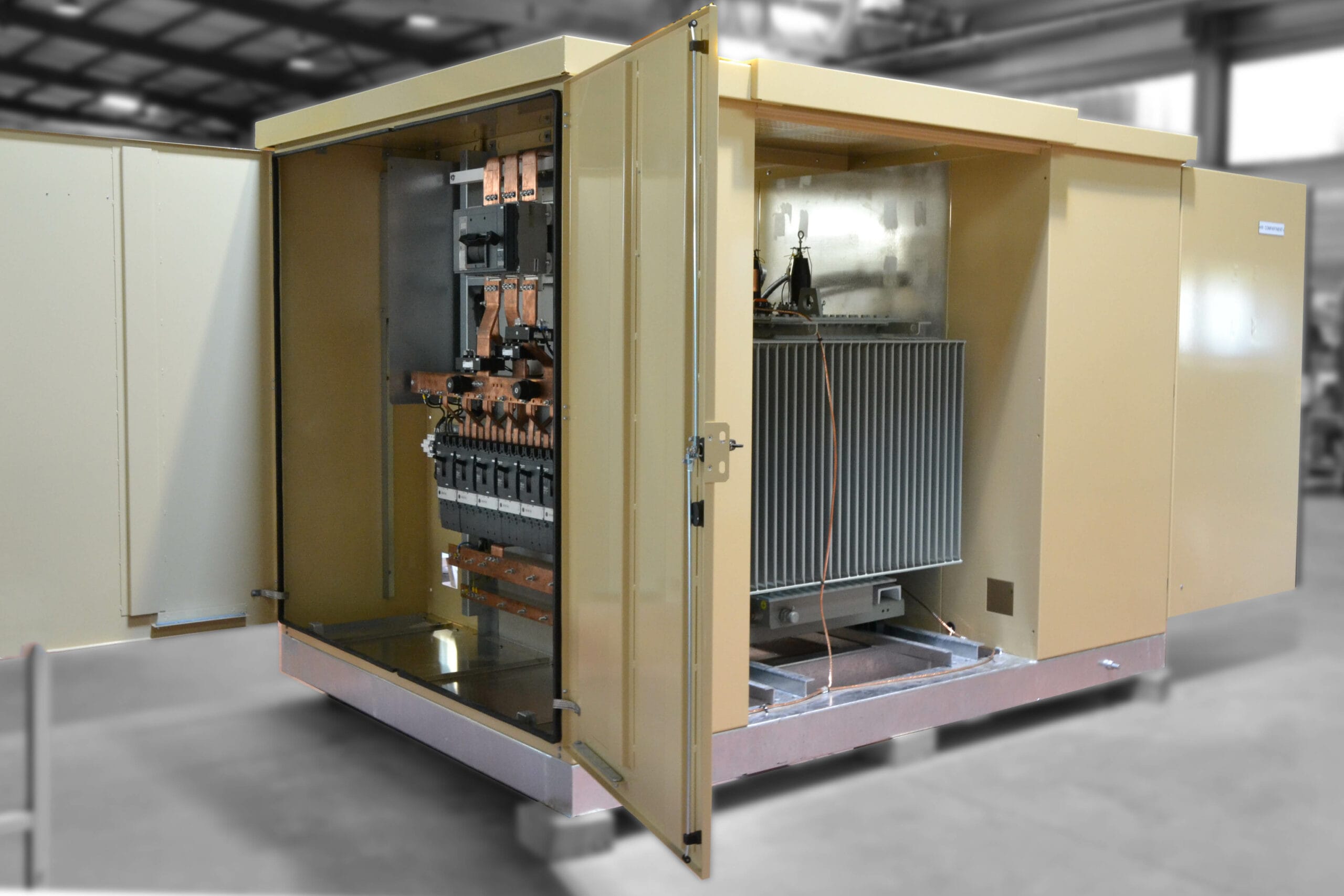

HV/LV Oil-filled or Dry-type power transformer
-
Bus Ducts (flexible/rigid)
-
Main low-voltage panel
-
Auxiliary Transformers
-
AC/DC UPS
-
Earthing & Grounding systems
customisation
Bispoke equipment
- Self-supporting skid
- Skid with grille
- Kiosk

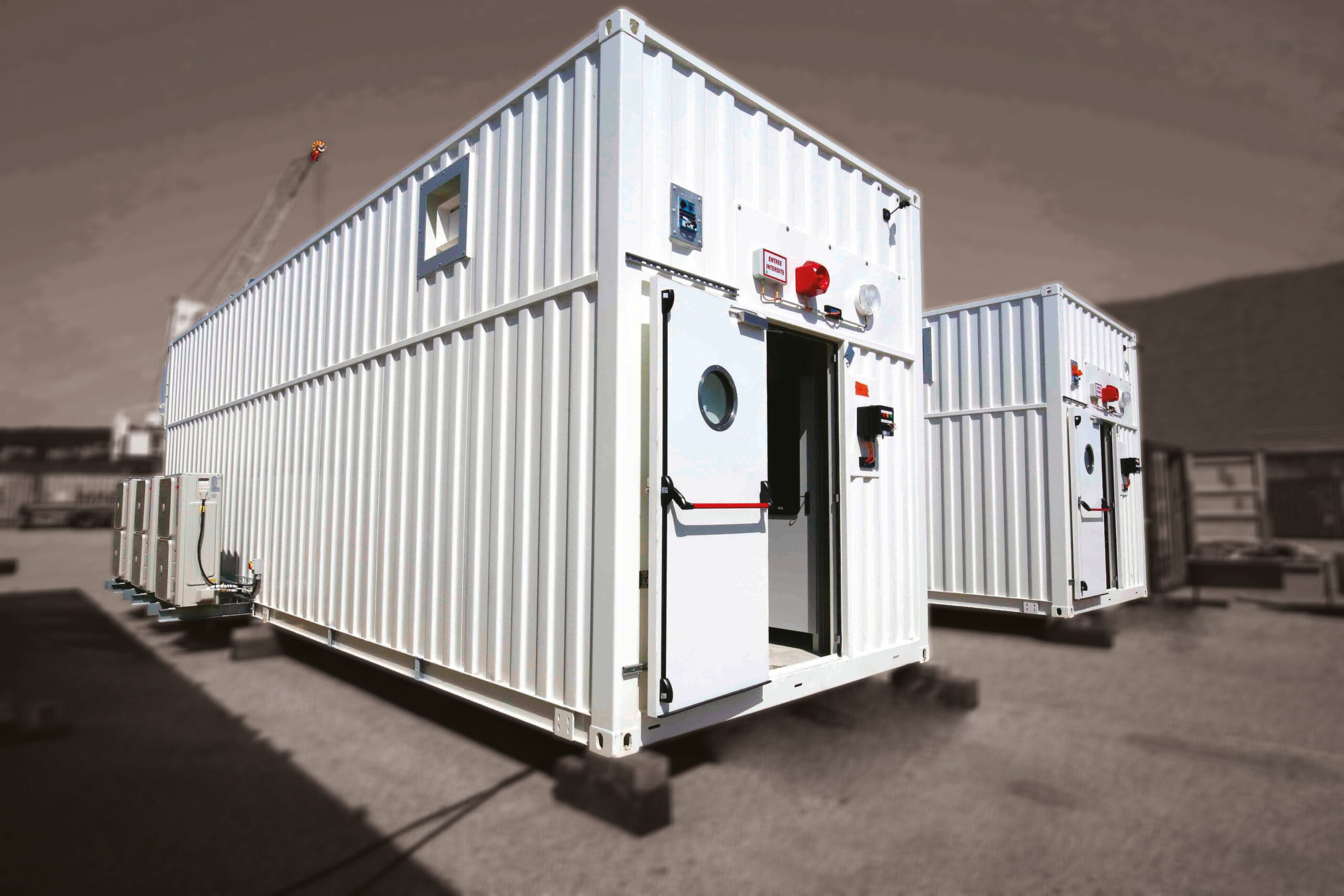

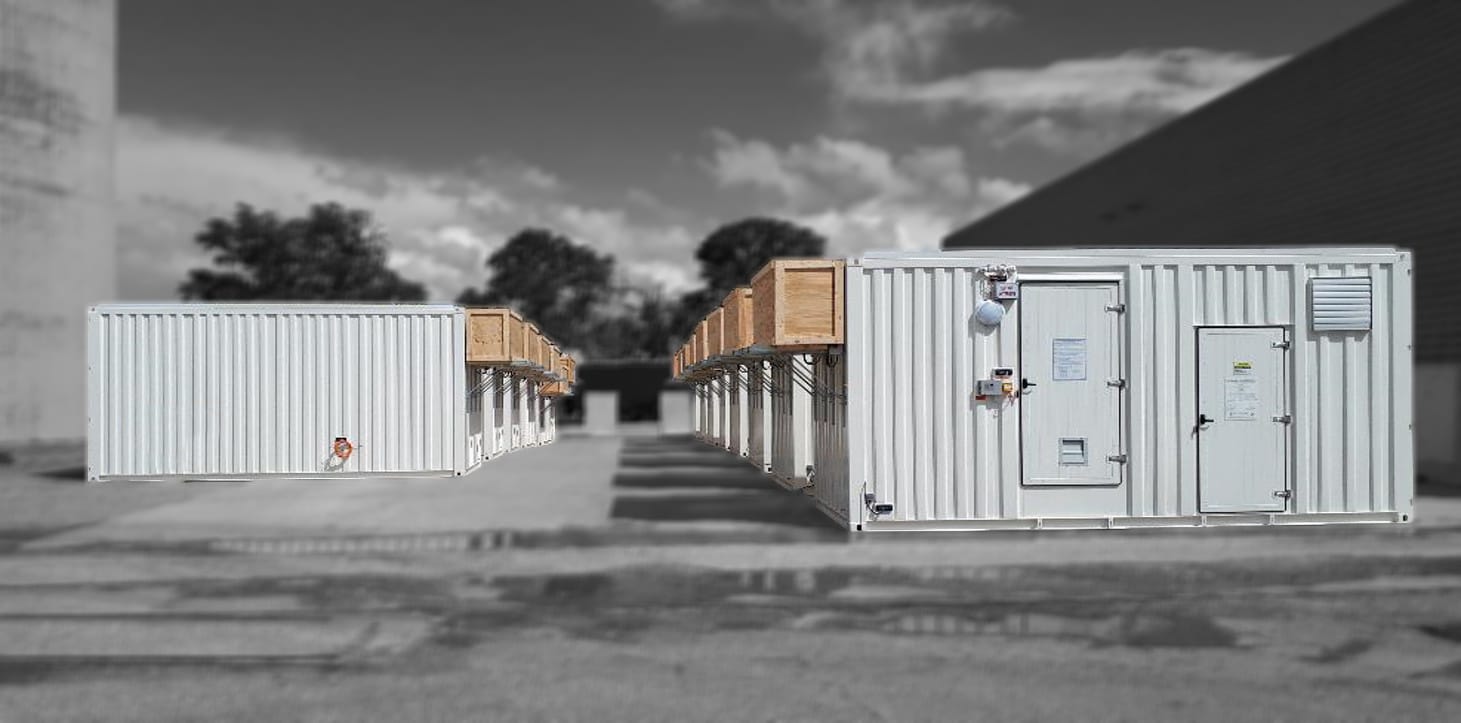

- ISO container

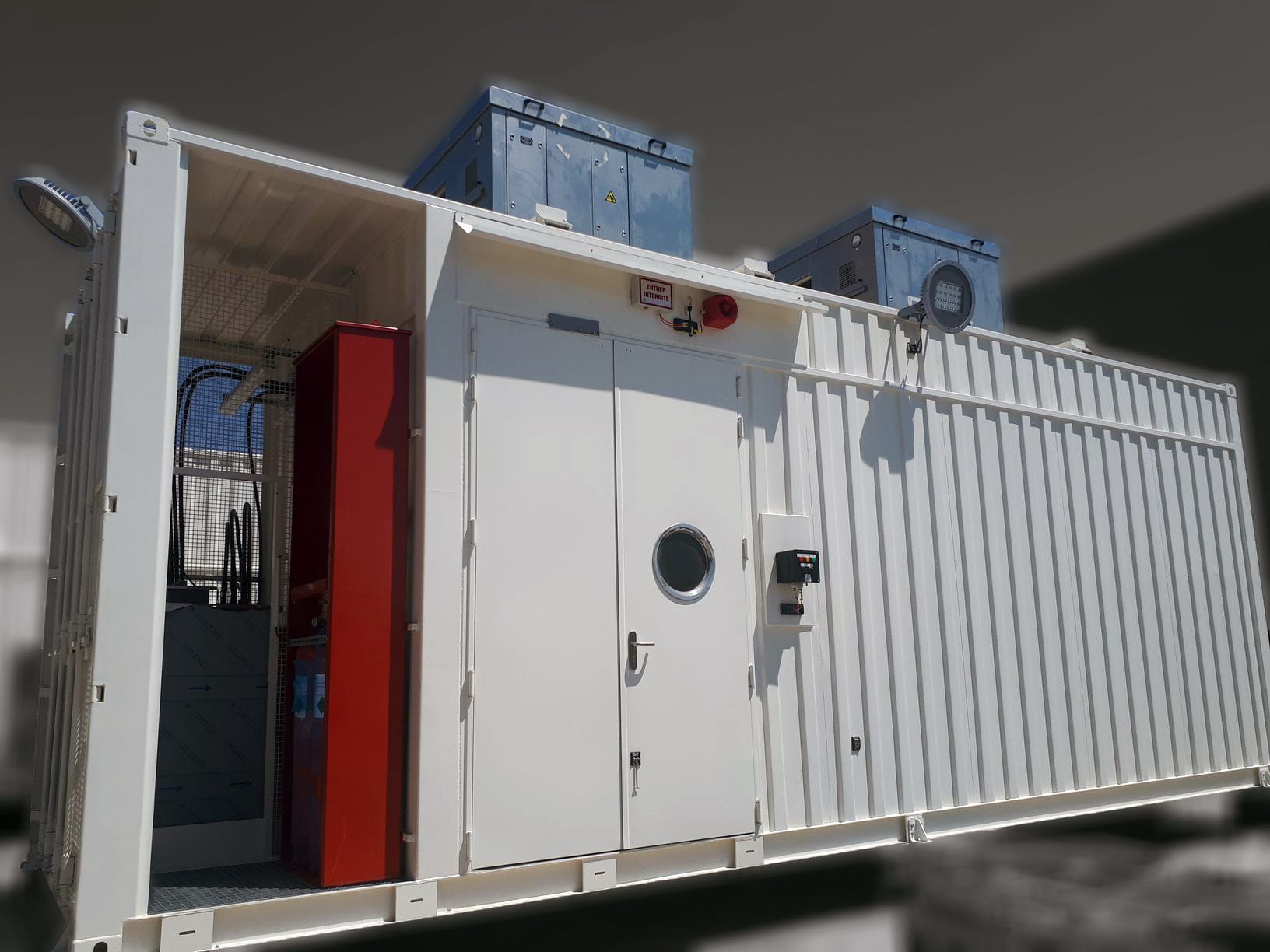

- Customised ISO container
- Heavy duty type specific cabin
- Sandwich panel modular cabin
- Insulation of interior walls with sandwich panels
- Sound and thermal insulation
- Protection rating up to IP65
- Fire resistance R30/90/120/180 mins (according to EN13501-2)
- Firewall REI30/90/120/180 mins (according to EN13501-2)
- A60/H120 compliance
- Cable feed-through / cable feed plate
- Tightness of the interconnection boxes / cable inlet
- Ground network with multiple connections to the external ground network
- HV/LV power connections made of copper, aluminium, bus duct
- Monitoring and control/network connections (Profibus / Ethernet / Fibre optics)
- MCT Module Cable Transit
- Conventional/addressable/PLC FSS
- Smoke/Heat detection
- Detection via suction
- Detection of Co2/H2/… gas
- Detection of Flames/IR/UV
- Field equipment = lighted panels/BREG
- Automatic extinguishing systems with Neutral gas (Argon/Nitrogen, etc.)
- Automatic extinguishing systems with Chemical gas (FM200/Novec, etc.)
- Automatic extinguishing systems by spraying/sprinkling (Sprinklers, etc.)
- Split/Multi Split air conditioning
- Rooftop type air conditioning
- Indoor/outdoor single-piece air conditioning
- Freecooling option
- Cooling tower system
- Adiabatic cooling
- Forced ventilation
- Utility Box / Offset Input-Output Box / Access control / Remote control
- Indoor fittings: offices, break rooms, toilets, etc.
- Lifting point definition: top, bottom, etc.
- Lifting equipment definition: slings, spreaders, spacers, etc.
- Load lowering definition for sizing concrete (long green) or steel studs
